The drying method of traditional Chinese medicine decoction pieces is directly related to the quality of decoction pieces, before the use of solar room drying both meet the certification requirements and can reduce costs, but the current solar room design of a small number of enterprises is not reasonable, one is small area, can not meet the production requirements. Second, the facilities of the solar room are not perfect, only dustproof function, no supporting ventilation, dehumidification, floor frame and other devices, and the drying speed is slow. The company according to the characteristics of traditional Chinese medicine decoction pieces designed in line with the belt dryer, the use of belt dryer equipment to dry the decoction pieces, not affected by climate, than natural drying health, and can shorten the drying time, but also mass production.

Traditional Chinese medicine decoction pieces are processed and processed according to traditional Chinese medicine theory and processing method, which can be directly used in traditional Chinese medicine clinic. This concept shows that there is no absolute boundary between Chinese herbal medicine and Chinese herbal slices, and Chinese herbal slices include parts of Chinese herbal slices processed in the place of origin (including segments, blocks, and peels), original herbal slices, and sliced (on the basis of processing in the place of origin) and prepared slices. The first two types of management should be regarded as Chinese medicinal materials, only according to the theory of traditional Chinese medicine in the formulation, preparation as decoction pieces understanding. The concept of decoction pieces in the sense of management should be understood as :' According to the needs of the preparation or preparation, the finished product of further cutting and gunning of the net medicinal materials processed by the origin is called traditional Chinese medicine decoction pieces. . On September 8, 2012, 12 TCM decoction pieces enterprises were exposed to dye drugs with chemical raw materials.

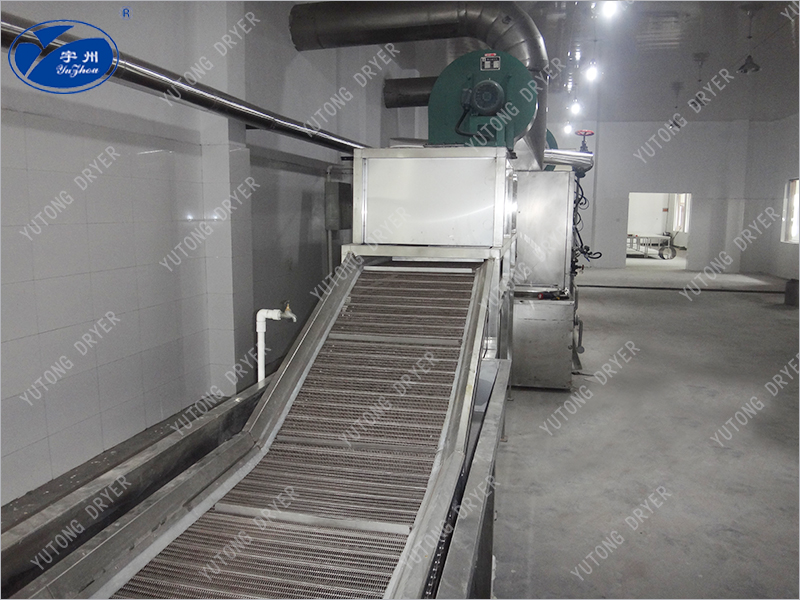

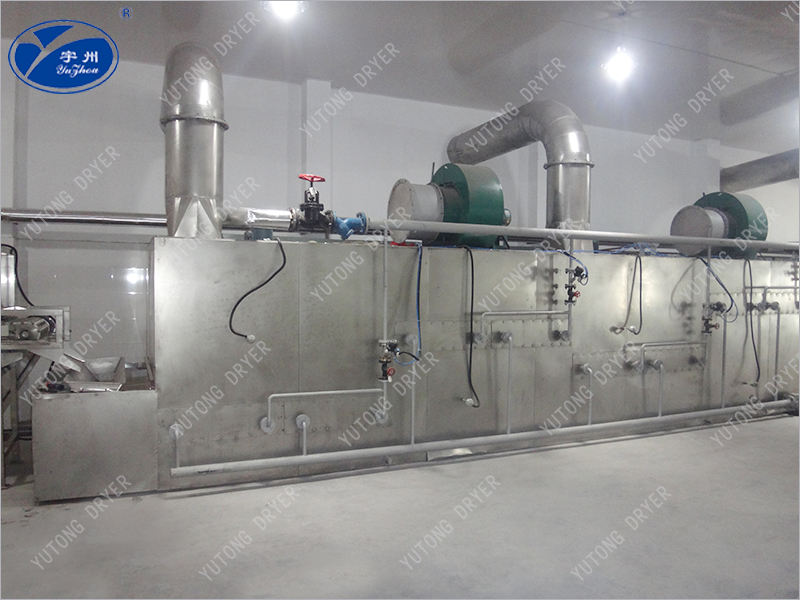

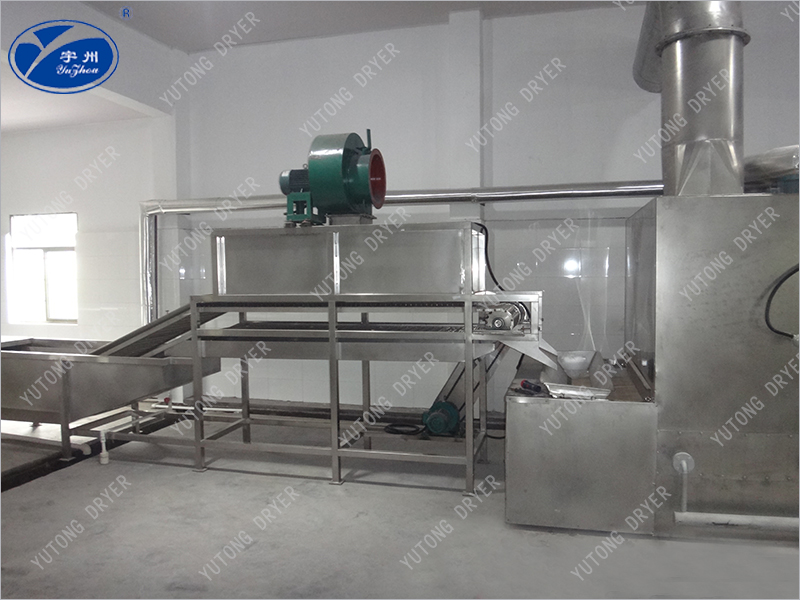

The belt dryer is composed of feeding system, distributing system, inlet air filtration system, heating and cooling system, main engine, transmission system, bypass filtration system, discharge system, exhaust air and humidity system, control system, etc. When working, the material is fed from the feeding system to the cloth system, the material is added to the belt dryer, and the material meets the hot air and cold air passing through the mesh belt to conduct heat and mass transfer. The hot air recycling makes the energy consumption lower. After reaching a certain humidity, part of the moisture is forced to take away the water, and the material is dried and cooled.

1, hot air inlet air temperature through the ratio control valve display control, so as to control the inlet air temperature within the set range.

2, the speed of the mesh belt is adjustable, to ensure the residence time of the material, but also to ensure the quality of the discharge.

3, drive motor, mixing motor, exhaust fan variable frequency adjustable.

4. The bottom of the bottom mesh belt of the belt machine is made into a sloping surface for material collection and cleaning.

5, after the completion of the equipment, the transmission system test run, no abnormal sound and blockage.

6. Set an ultrasonic level detector on the mixing bin to ensure a reasonable level of material and linkage with the front conveyor line to make the production line more smooth.

7. The door on each part of the box is well insulated, sealed, and easy to open and close.

8. Both sides of each unit are provided with cleaning access doors, which can directly flush the inside of the equipment.
