Since the 19th century, beets, like sugar cane, were originally used to extract sugar, and then people found an ingredient in beets that can play a very good cleaning role, without harming the skin, very safe, named betaine, which has been used in cleaning skin care products safe and effective in modern times.

Betaine is an alkaline substance with strong moisture absorption properties, so it is often treated with anti-caking agents in the production process, and its molecular structure and application effect are not significantly different from natural betaine, which belongs to the natural equivalent of chemical synthesis.

Hygroscopic scaly or riblike crystals that decompose at about 310° C and taste sweet. Highly soluble in water, soluble in methanol, soluble in ethanol, insoluble in ether. After the decomposition reaction of concentrated potassium hydroxide solution, trimethylamine can be formed, which is hygroscopic and easily delixified, and trimethylamine can be released. High temperature resistance. IR argument Max cm - 1:2980282 0250 0174 0164 0147 0143 0140 0133 0124 0119 0113 0109 0105 0103 0890840670; NMR(D,O)δ: 3.3,4.2[1].

1. Material Name: Betaine

2. Slurry solid content: 50%;

3. Water evaporation: 500kg/h;

4. Output: 500㎏/h;

5. Spray volume: 1000㎏/h;

6. Inlet air temperature of drying tower: 250℃;

7. Drying tower outlet air temperature: 120℃;

8. Final moisture content of the finished product: ≤ 1%;

9. Finished product size: about 60-80 mesh; Recovery rate :≥96%

10. Electrical control requirements: PLC program control;

11. Heat source: Coke indirect combustion furnace (user provided)

12. Air volume: 14210Kg/h;

13. Heat consumption: 81×104KCal/h; (Steam consumption 1.2 tons)

14. Installed capacity: about 85KW

15. Compressed air consumption: 1.2m3/min

16. Floor area: 8x16x28m (specific design drawing shall prevail)

1. Hot air system

2. Coke indirect combustion furnace user provided:

3. Hot air piping

    Liner material 304, wall thickness 2mm, inner wall polishing amount Ra0.8;

    Outsourcing material Q235,1.5mm; Insulation layer 150㎜, filled with glass fiber;

    Skeleton carbon steel; Inlet and outlet air flange 304; The sealing gasket adopts tetrafluororubber;

4.  Feed system

5. Feeding pipes, valves

    The pipe is made of 316L stainless steel sanitary polishing pipe; Quick opening sanitary pipe joint for connection;

    Valve with 316L stainless steel quick opening ball valve.

6.   High pressure homogenizing pump Q: 1500L/h; P: 25MPa contact material part 316L material, 15KW

7.   Pressure atomizer

     It is a key device for crushing liquid into droplets. Our factory can provide various forms of matching nozzles to adapt to particle size adjustment. One pressure nozzle is adopted, and the orifice size and vortex plate can be adjusted.

Contact material 316L, the spray sheet material is made of carbide, which can resist high pressure abrasion.

8.   Hot Air distributor

     Specification QZP1000, the air inlet is equipped with two open hot air distribution plates, so that the hot air evenly enters the drying tower in the optimal direction.

     The inner liner material is 2mm304, the weld is polished and polished, the inner wall is polished Ra0.8, the outer shell material is Q235, the wall thickness is 3mm pattern plate, the insulation layer is filled with glass fiber, and the skeleton is carbon steel.

9.   Drying tower top cover

     The inner liner material of the top cover of the drying tower is 316L, the wall thickness is 2mm, the inner wall polishing amount is Ra0.8, the insulation layer is filled with glass fiber, the skeleton is carbon steel, the upper surface material is Q235, the wall thickness is 3mm pattern plate.

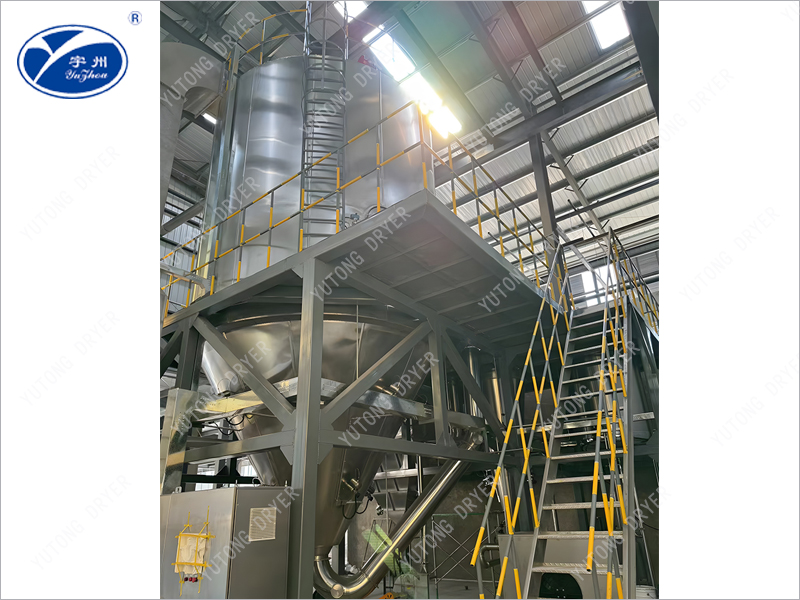

10. Drying tower cylinder

     Inner liner Φ4.5×16m, inner liner and drying tower top cover inner liner circular filter, no sanitary dead Angle, weld grinding and polishing, inner wall polishing Ra0.8, inner liner material 316L, wall thickness 2mm, skeleton carbon steel, insulation layer 80mm, insulation material fixed in the Angle steel ring; Outsourcing Q235 plate 0.8mm color steel plate; Made in 6 pieces and assembled on site.

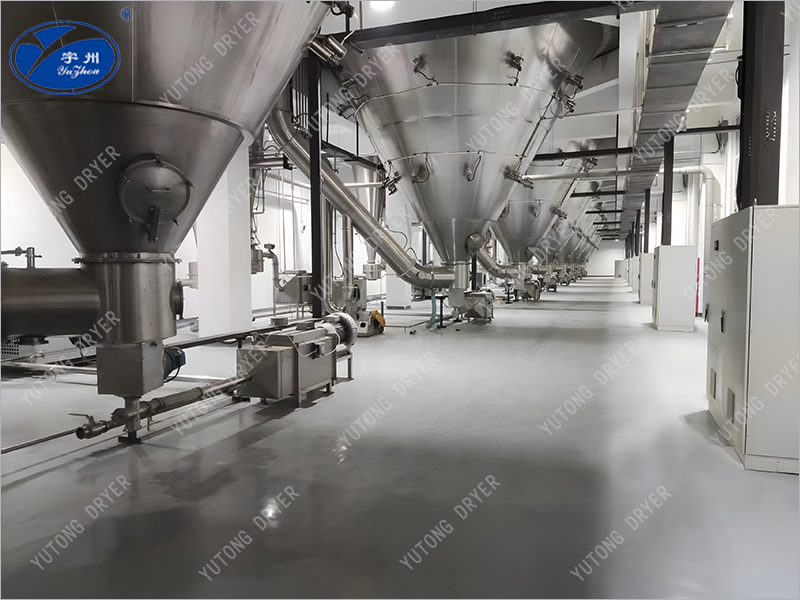

11. Drying tower cone

     The inner liner weld is polished, the inner wall polishing amount is Ra0.8, the inner liner material is 316L, the wall thickness is 2mm, the skeleton carbon steel, the insulation layer is 80mm, the insulation material is fixed in the Angle steel ring, the outer Q235 plate,0.8mm color steel plate, divided into 6 pieces of production, on-site assembly.

12. There are 4 pieces of cleaning tower door, the straight cylinder of drying tower is divided into two layers and the cone is one layer, and there are 18 steam hammers.

13. Product cooling, receiving system

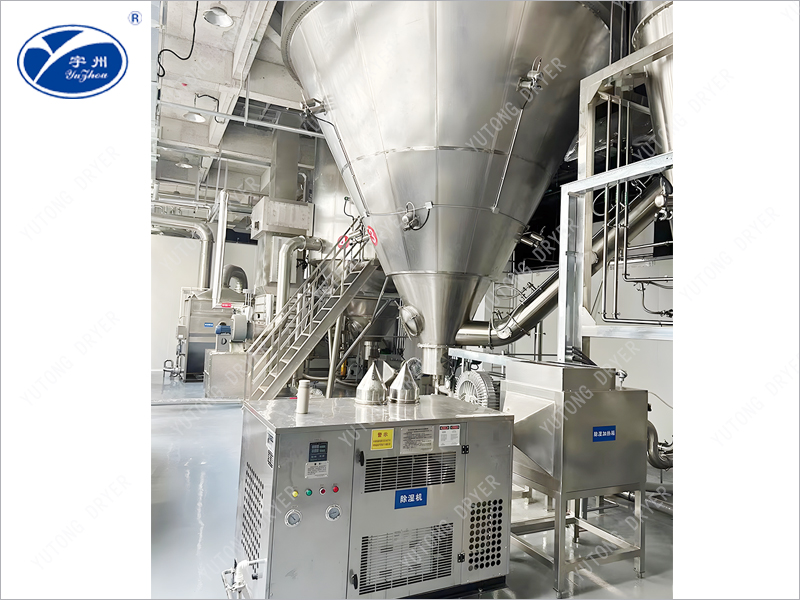

14. Cooling air dehumidifier

      The air volume is 2500m3/h, the temperature is 35-10℃, the inner liner is 304, the fin tube, the base tube is copper tube, the fin is aluminum, the outsourcing aluminum alloy plate. Freezer dehumidifier integrated assembly with freezer unit. The air outlet is equipped with high efficiency filter, the filtration accuracy is food grade, the air volume is 1000m3/h, the shell is 304, the inner wall is polished Ra0.8, and the filter material is ultrafine glass fiber paper.

15. Tower bottom cooler
